Catalog Number - 95025-09-5R

The 95025-09-5R BASIK Headspace Caps are a made‑to‑order, high‑purity configuration combining ultra‑clean silicone/PTFE septa (no added colorants) with magnetic bimetallic cap construction, providing exceptional chemical inertness, easier crimping than steel caps, and compatibility with automated headspace systems.

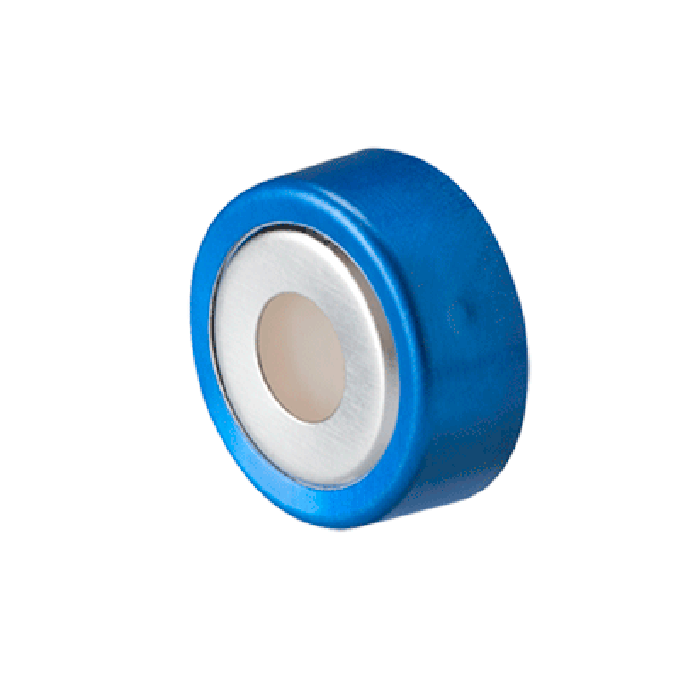

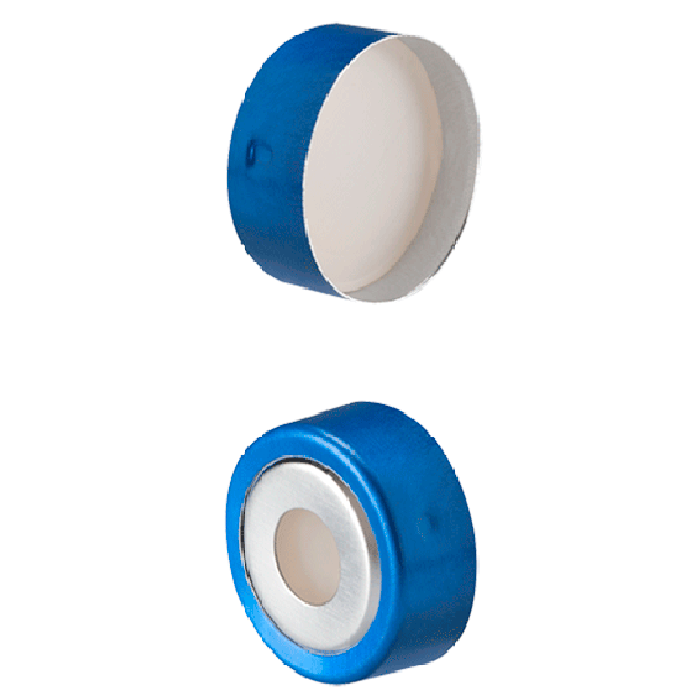

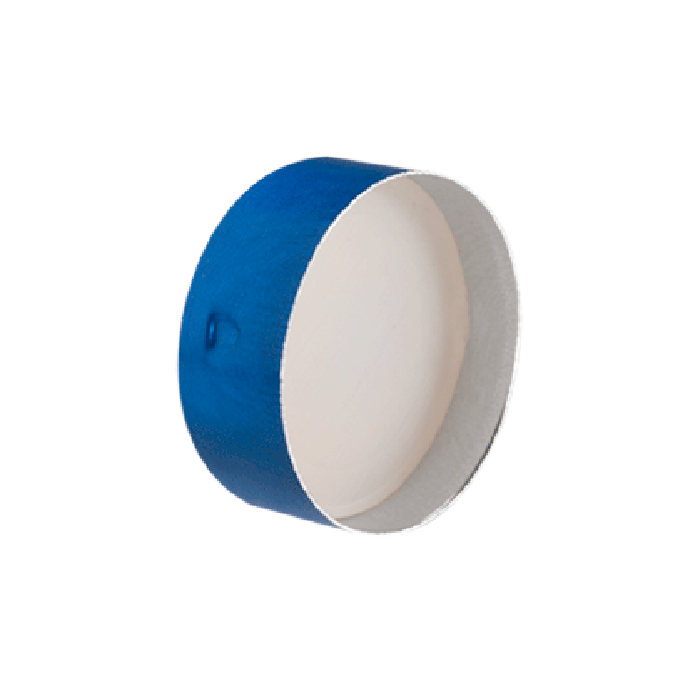

These caps are fitted in 20 mm blue bimetallic magnetic closures with an 8 mm center hole, offering enhanced sealing surface area, consistent needle access, and efficient handling for high‑throughput laboratory environments.

✅ Recommended for validated workflows requiring ultra‑clean septa with magnetic handling

Bimetallic Magnetic Caps – Automation + Ease of Crimping

• Bimetallic cap construction provides:

  • Magnetic compatibility for autosamplers

  • Easier crimping vs. full steel caps

• Blue cap finish enables:

  • Visual identification

  • Workflow organization

✅ Ideal for automated GC headspace systems and high‑throughput labs

Ultra‑Clean Silicone/PTFE Septa – Maximum Purity

• Translucent silicone rubber / natural PTFE

• No added colorants

• Proprietary processing ensures:

  • Ultra‑low bleed

  • Minimal extractables

  • High chemical purity

✅ Ideal for:

• trace‑level detection

• high‑sensitivity GC headspace methods

• regulated environments

Soft Septa – Easy Needle Penetration

• Durometer: 45 Shore A (soft formulation)

• Septa thickness: 3.0 mm

• Provides:

  • Reduced injection force

  • Smooth penetration

  • Reduced needle wear

✅ Improves autosampler performance and reproducibility

8 mm Center Hole – Enhanced Seal Integrity

• Smaller opening provides:

  • Increased septa contact area

  • Improved sealing reliability

• Maintains:

  • Consistent autosampler access

✅ Ideal for tight sealing with automated workflows

Wide Temperature Range – Headspace Ready

• Operating range:

  • -60°C to 200°C

✅ Suitable for:

• Heated headspace GC

• VOC and semi‑volatile analysis

• Broad analytical methods

Crimp Top Design – Secure Seal Integrity

• 20 mm bimetallic magnetic crimp cap

• Provides:

  • Airtight sealing

  • Reduced evaporation

  • Reliable volatile sample containment

✅ Essential for accurate headspace GC results

Designed for 20 mm Headspace Vials

• Compatible with:

  • 20 mm crimp‑top headspace vials

✅ Ensures:

• Proper fit

• Consistent analytical performance

Performance Positioning – Ultra‑Clean + Automated Workflow Option

• Compared to white silicone/PTFE:

  • ✅ No color additives (cleaner baseline)

• Compared to steel magnetic caps:

  • ✅ Easier crimping

• Compared to non‑magnetic caps:

  • ✅ Automated handling capability

✅ Ideal for:

• automated GC headspace workflows

• high‑throughput laboratories

• trace‑level and high‑purity analytical methods

Typical Applications

• Automated headspace GC analysis

• Pharmaceutical QA/QC and validation

• Environmental VOC testing

• Food and flavor analysis

• Trace‑level contaminant detection

Important Usage Notes

• Requires 20 mm crimping tool for proper sealing

• Magnetic caps:

  • Require compatible autosampler systems

✅ Best suited for:

• automated, high‑purity, high‑throughput workflows

🚨 Made‑to‑Order & Pricing Information

This is a custom, made‑to‑order item.

• Please contact Customer Service for formal quotation, lead time, and ordering assistance. Classification:
